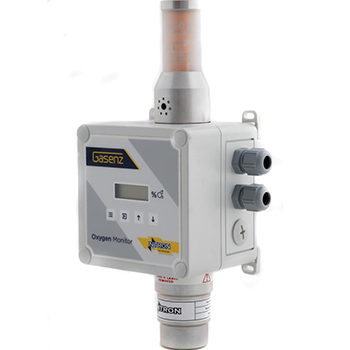

Ambient Oxygen Monitor | Gasenz

Description Ambient Oxygen Monitor | Gasenz Sensor Zirconia (ZR) Electrochemical (EC) Measurement Range 0…25 % Output Resolution 0.01 % Pressure Range 900…1100 mBarabs Response time (T90) < 15 seconds within selected range @ 25 °C (77 °F) within selected range Operating Temperature Range -25 °C… 60 °C 0 °C… 45 °C Life Expectancy Up to 5 years Up to 18 months Humidity 0…95 %rh non-condensing (with normal use) Shelf Life Unlimited Up to 3 months Calibration Interval (application dependent) 12 months 3…6 months Monitor Electrical Display LCD, %O2 Output Signal 4…20 mA Digital Communications RS232 Relay Output Options 1 off relay, dry contact 5 Amp-rated (2 relay outputs assigned to control light tower indicator) Power Supply 85…230 V AC (50…60 Hz) or 24 V DC Maximum Power Consumption 7.2 W 3.6 W Indicators LCD, audible and visual alarms Mechanical Housing Material ABS Mounting Wall / vertical surface Standards and Certification ETL: UL-61010-1, EMC: EN 50270 Ambient Oxygen Monitor | Gasenz
