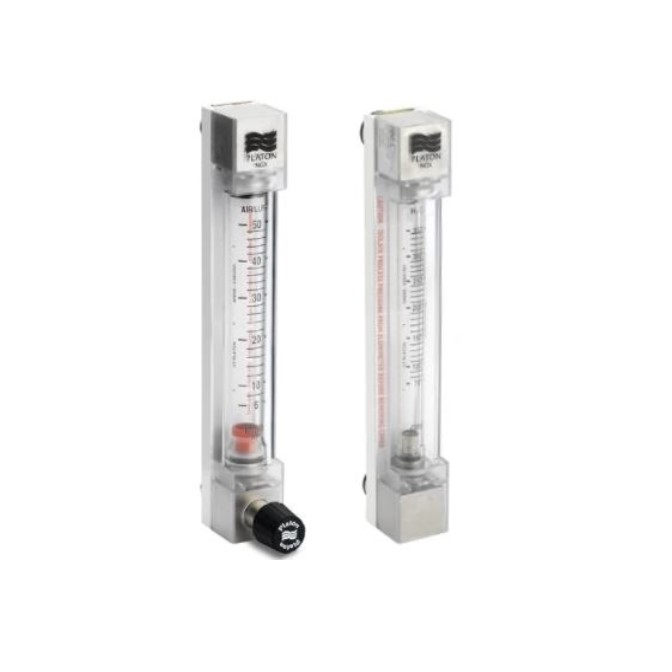

Platon Variable Area Flow Meters Glass Tube | DS1115

Description Platon Variable Area Flow Meters Glass Tube | DS1115 FRAMES Backplate White polyester powder coated aluminum Endblocks Suffix B – Bright nickel-plated brass Suffix S – Stainless Steel Seals Nitrile on brass units Viton on Stainless Steel units Alternative seals available Cover Clip on clear UV stabilized rigid polycarbonate (required to locate flow tube into end blocks) Connections Models available with in-line or rear-facing process connections Max. Temp 100°C with Viton seals, 80°C with nitrile seals Max. Pressure Recommended maximum operating in non-shock applications: 16 bar Valve Option Fine control valve option has needle valve fitted on flowmeter inlet Mounting Stud M5 studs 13mm long c/w nut FLOWTUBES Flowtube Borosilicate glass, precision moulded in three diameters to suit flow range Scale Fused ceramic black ink Scale Length NGX series – 100mm nominal LGX series – 30mm nominal Float Precision machined float, rotates to give flow visualization Model HD: Hollow Dural, red anodized Model HS: Hollow Stainless Steel Model SS: Solid Stainless Steel Accuracy ±1.25% FSD standard for NGX series (±2.5% for 1CHD/BHD models, ±3% for predicted scales) ±5% FSD for LGX series Calibration All tubes are flow tested. Standard scales are for air & water, as listed. Custom scales to suit process fluid Platon Variable Area Flow Meters Glass Tube | DS1115
