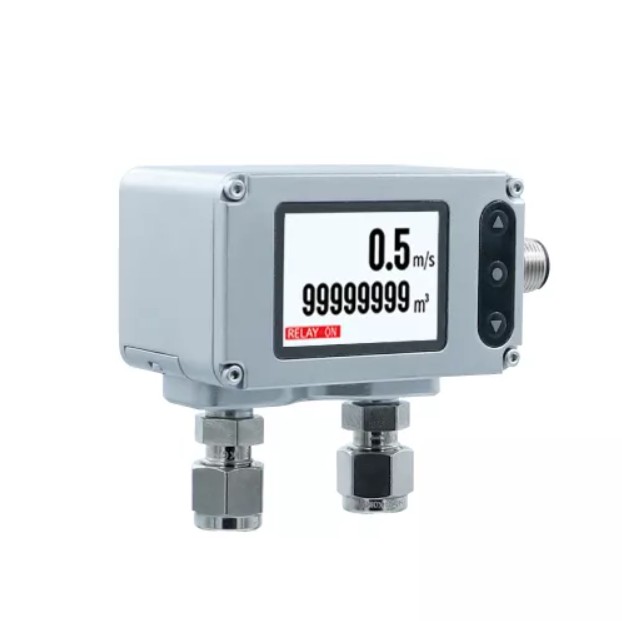

Thermal Mass Diff. Pressure Signal Processor | FDM06-X

Description Thermal Mass Diff. Pressure Signal Processor | FDM06-X Specification Input Sensor type Hot-wire sensor Turndown ratio 100 : 1 Measuring range Max. 60 m/s Output Output signal 4 … 20 mA / 0 … 10 V / Relay / RS-485 Signal connection 3-wire Warm-up time 60 sec Response time t90≦6 sec Load resistance Current output : ≦500 Ω Voltage output : ≧10 KΩ Communication Communication methods & protocol RS-485 Modbus RTU RS-485 baud rate 9600、19200、38400、57600、115200 bps Accuracy Accuracy 60 m/s：±(1.5% F.S.) Temp. influence 0.2% / °C Uncertainty of factory calibration ±1% *The measurement range is defined at the standard condition(1013 mbar, 20°C). *Accuracy based on tests with a 300 mm averaging Pitot tube. Environmental Medium Non-corrosion gas / Air Operating Temp. 0 … 50°C / 20 … 90%RH (Non-condensing) Operating Humidity 20 … 90%RH(Non-condensing) Storage Temp. -20 … 60°C Body operating pressure 16 bar Electrical Power supply DC 24 V ±10% Current consumption 24 V : 110 mA Relay capacity Max current : 6 A Max voltage : DC 24 V (DC 36 V Max) Electrical connection M12 8P connector Installation Installation Ferrule fittings：1/4″(Rigid), Ø6(Flexible) Display Display readout 0 … 99999999 (Cumulative flow : 8-digit) 0 … 99999 (Instantaneous flow : 5-digit) Decimal point Button Sampling time 1 cycle/sec Flow unit m/s, ft/s, L/min, m³/min, m³/h, mL, L m³, ft³, inch³, gal, uk gal Response time adjustment range 0.5 … 300 sec Certification Certification CE Protection IP rating IP65(Housing) Electrical protection ■ Reverse polarity ■ Over-voltage Material Housing Aluminum alloy Thermal Mass Diff. Pressure Signal Processor | FDM06-X
