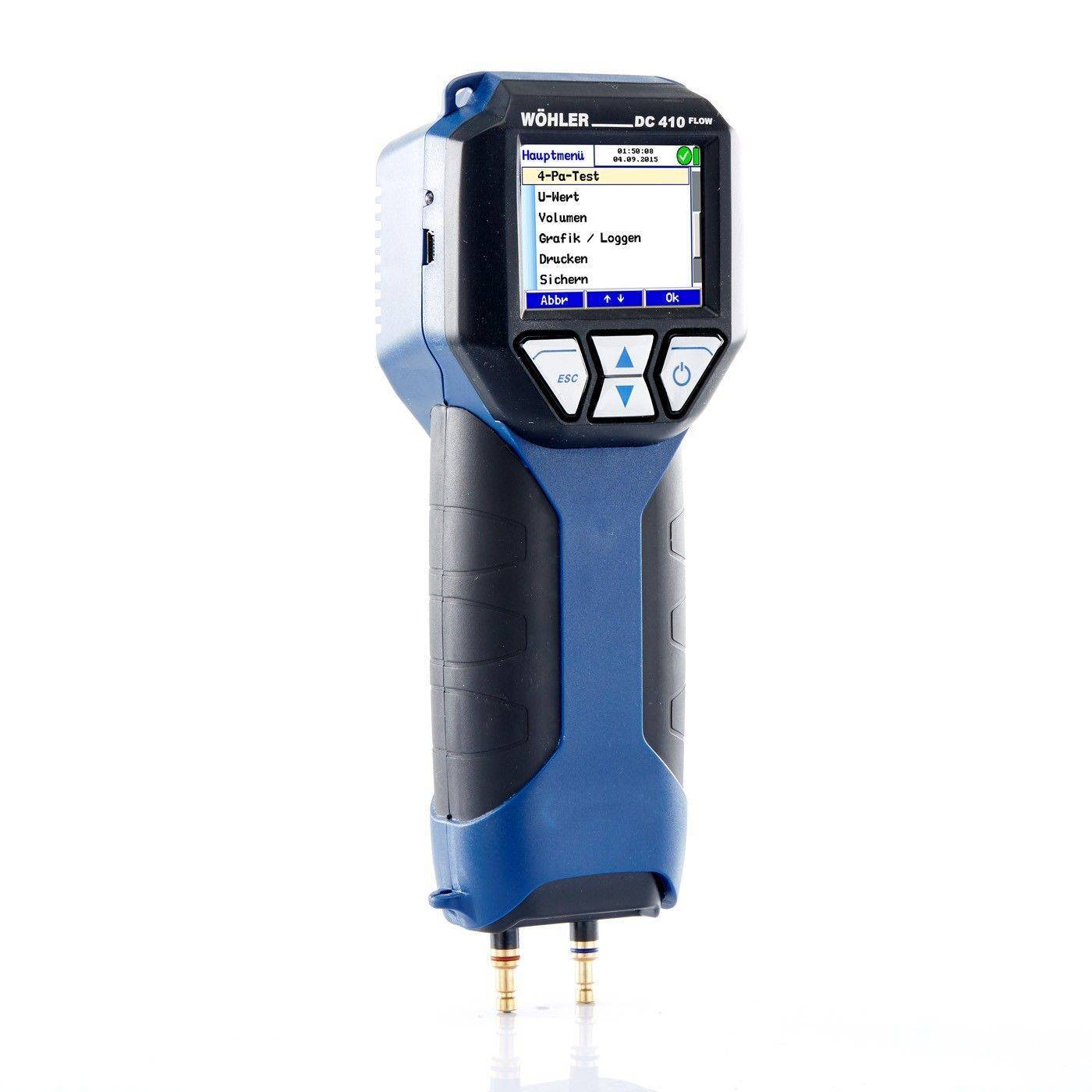

Multifunction Pressure and Flow Meter | DC410 Flow

Description Multifunction Pressure and Flow Meter | DC410 Flow Technical data Differential Pressure Range ±100 hPa Accuracy < 3 % of the reading, if the value is < ±5 Pa, better than ±0,15 Pa Resolution 0,01 Pa within the range ±110 Pa 0,1 Pa within the range ±1.000 Pa otherwise 1 Pa Air speed Range 0,3…120 m/s Resolution 0,01 m/s Continuous density correction: automatic, with temperature signal Temperature (internal sensor) Temperature (internal sensor) -20…60 °C Accuracy < ±1 °C Resolution 0,1 °C External temperature probe Range 2 canals, -20…800 °C Accuracy < ±2 °C at 0…133 °C otherwise 1,5 % of the value, according to the directive EN 50379-2 Resolution 0,1 °C Relative humidity Range 0…100 % r.H. (relative humidity), non condensing Accuracy < ±2 % r.H., at 0…90 % r.H., otherwise < 3 % r.H. Resolution 0,1 % r.H. Barometric Pressure Range ±300…1,100 hPa Accuracy < ±1,5 % hPa of reading Resolution 0,1 hPa Current consumption 4 AA rechargeable batteries or 4 AA disposable batteries 1,5 volt Interfaces USB interface for data transfer to a PC. It is possible to transfer the data directly from the meter to the Wöhler TD 600 thermal fast printer Operating temperature 5…40 °C Dimensions 80 x 225 x 60 mm Multifunction Pressure and Flow Meter | DC410 Flow
