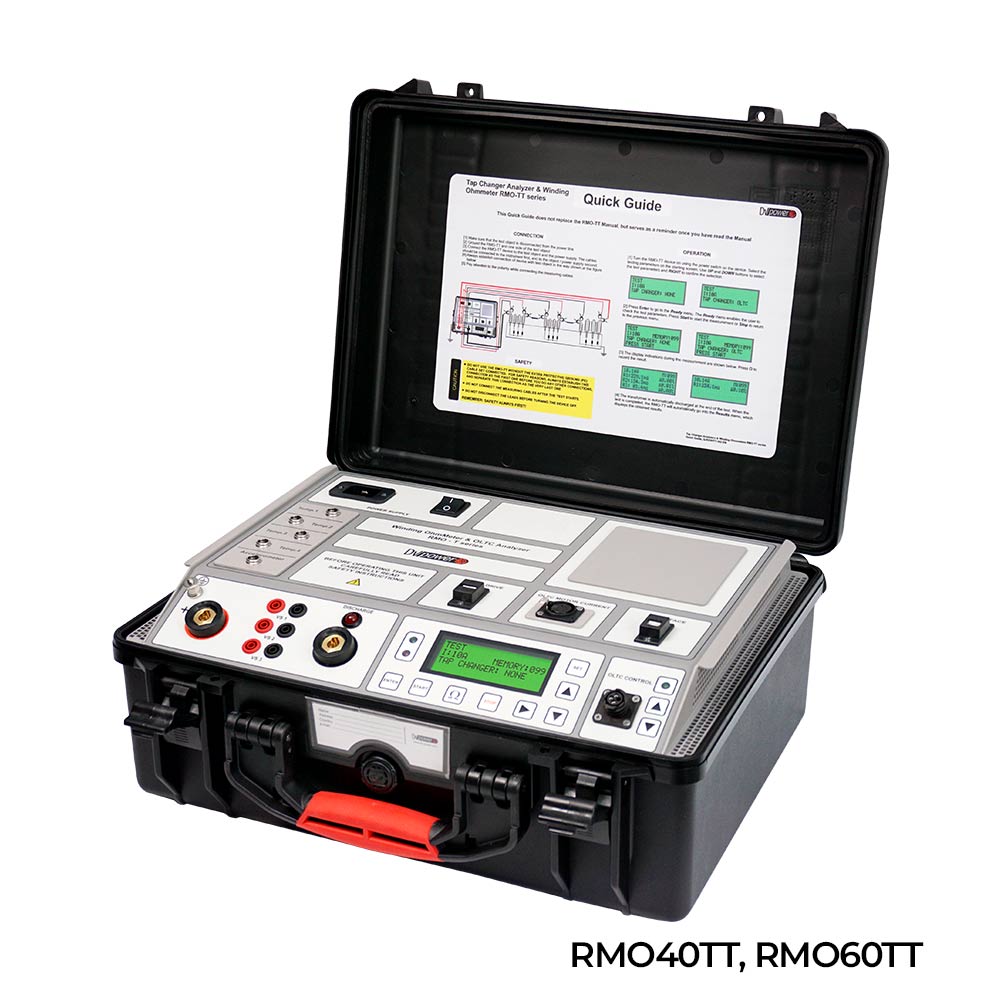

Winding Single Phase Resistance Meters | RMO-TT

Description Winding Single Phase Resistance Meters | RMO-TT Mains Power Supply Connection according to IEC/EN60320-1; UL498, CSA 22.2 Mains supply: 90 – 264 V AC, 50/60 Hz Input power: 2 250 VA Winding Resistance Measurement Test currents: RMO40TT: 5 mA – 40 A DC RMO60TT: 5 mA – 60 A DC RMO100TT: 5 mA – 100 A DC Output voltage: up to 55 V DC Measurement range: 0,1 μΩ – 100 kΩ Measurement range / Typical accuracy: 0.1 μΩ – 1.999 kΩ: ± (0.1% rdg 0.1% F.S.) 2 kΩ – 9.999 kΩ: ± (0.2% rdg 0.1% F.S.) 10 kΩ – 100 kΩ: ± (1.0% rdg 1.0% F.S.) Measurement range / Resolution: 0.1 μΩ – 999.9 μΩ: 0.1 μΩ 1.000 mΩ – 9.999 mΩ: 1 μΩ 10.00 mΩ – 99.99 mΩ: 10 μΩ 100.0 mΩ – 999.9 mΩ: 0.1 mΩ 1.000 Ω – 9.999 Ω: 1 mΩ 10.00 Ω – 99.99 Ω: 10 mΩ 100.0 Ω – 999.9 Ω: 0.1 Ω 1.000 kΩ – 9.999 kΩ: 1 Ω 10.00 kΩ – 99.99 kΩ: 10 Ω OLTC DVtest (DRM) Sampling rate: 0,1 ms Vibration Measurement Channel Resolution: 0,1 ms ICP accelerometer, ±100 mV/g, ±50 g Temperature Measurement Four temperature measurement channels Measurement range B-RXX0TT-314-EN, 2023-09-11 -50 ºC – 180 ºC Thermometer Pt100 class B Resolution 0,1 ºC Data Storage 1000 memory positions (standard) 5000 memory positions (optional) Display LCD screen 20 characters by 4 lines, with backlight, visible in bright sunlight Computer Interface USB (standard) RS232 (optional) Bluetooth (optional) Printer (optional) Built-in thermal printer Paper width 58 mm / 2.3 in Printer operating temperature: -20 °C – 70 °C Environmental Protection Ingress protection rating: IP67 (with closed lid) Environmental Conditions Environmental Conditions Storage & transportation temperature: -40 °C – 70 °C Humidity: 0 – 95% relative humidity, noncondensing Dimensions and Weight RMO40TT 13,5 kg   478 x 194 x 389mm RMO60TT 13,5 kg  478 x 194 x 389mm RMO100TT 15,5 kg  543 x 218 x 427mm Warranty 3 years 1 additional year upon registration on DV Power official website Applicable Standards Installation/Overvoltage category: II Pollution degree: 2 Safety: LVD 2014/35/EU (CE Conform) Standard EN 61010-1:2010 CAN/CSA-C22.2 No. 61010-1, 2nd edition, including Amendment 1 EMC: Directive 2014/30/EU (CE Conform) Standard EN 61326-1:2010 All specifications herein are valid at ambient temperature of 25 °C and standard accessories. Specifications are subject to change without notice. Specifications are valid if the instrument is used with the standard set of accessories. Winding Single Phase Resistance Meters | RMO-TT
