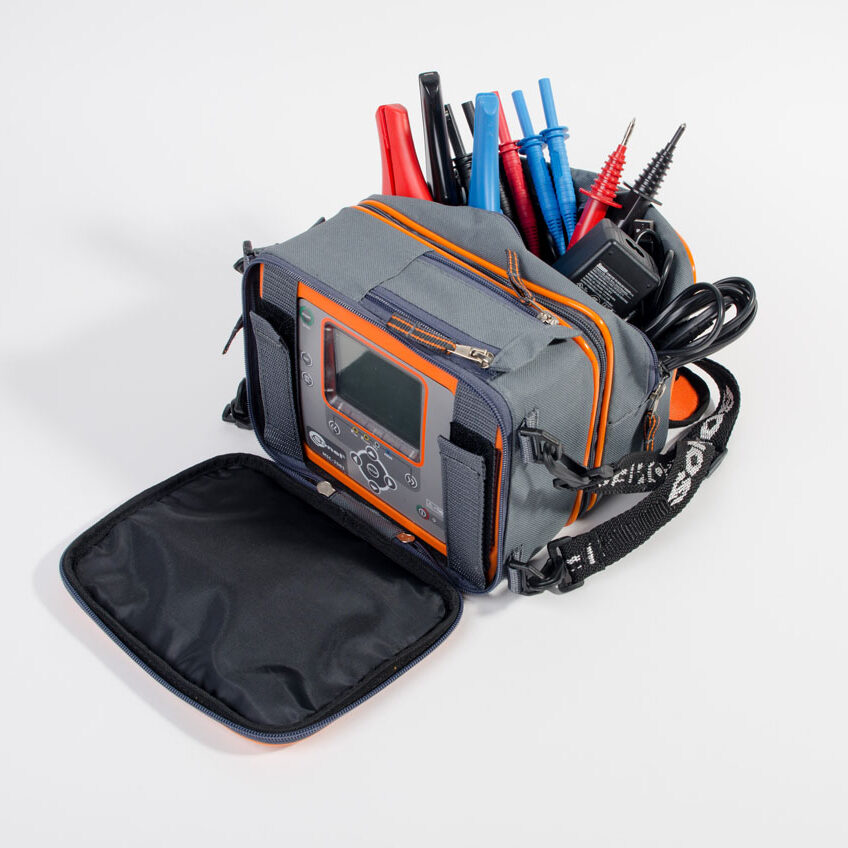

MIC-2501 Insulation Resistance Tester/Meter

Description MIC-2501 Insulation Resistance Tester/Meter Measurement range acc. to IEC 61557-2 for RISOmin=UISOnom/IISOmax…1 TΩ (IISOmax=1 mA) Range Resolution Accuracy 0,0…999,9 kΩ 0,1 kΩ ±(3% m.v. 20 digits) 1,000…9,999 MΩ 0,001 MΩ 10,00…99,99 MΩ 0,01 MΩ 100,0…999,9 MΩ 0,1 MΩ 1,000…9,999 GΩ 0,001 GΩ 10,00…99,99 GΩ 0,01 GΩ 100,0…999,9 GΩ 0,1 GΩ Values of measured resistance depending on measurement voltage Voltage UISO Measurement range 100 V 50 GΩ 200…400 V 100 GΩ 500…900 V 250 GΩ 1000…2400 V 500 GΩ 2500 V 1000 GΩ Continuity measurement of protective connections and equipotential bonding with 200 mA current. Measurement range acc. to EN 61557-4: 0,10…999 Ω Range Resolution Accuracy 0,00…19,99 Ω 0,01 Ω ±(2% m.v. 3 digits) 20,0…199,9 Ω 0,1 Ω 200…999 Ω 1 Ω ±(4% m.v. 3 digits) Voltage on open terminals: 4…24 V Output current at R <2 Ω: ISC >200 mA Compensation of test lead resistance Current flowing in both directions, mean value of resistance is displayed DC and AC voltage measurement Range Resolution Accuracy 0…299,9 V 0,1 V ±(3% m.v. 2 digits) 300…750 V 1 V ±(3% m.v. 2 digits) Frequency range: 45…65 Hz The acronym “m.v.” stands for a “measured reference value”. Electrical safety: type of insulation: double, in acc. with EN 61010-1 und IEC 61557 measurement category: IV 600 V (III 1000 V) in acc. to EN 61010-1 case protection rating in acc. with EN 60529: IP65 Other technical specifications: power supply of the meter SONEL L-1 NiMH 9,6 V; DC 12 V 2,5 A weight of the meter: approx. 0,9 kg dimensions: 200 x 180 x 77 mm display: LCD segment display measurement results memory: 990 cells, 11880 records, transmission of measurement results: USB Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost. MIC-2501 Insulation Resistance Tester/Meter
