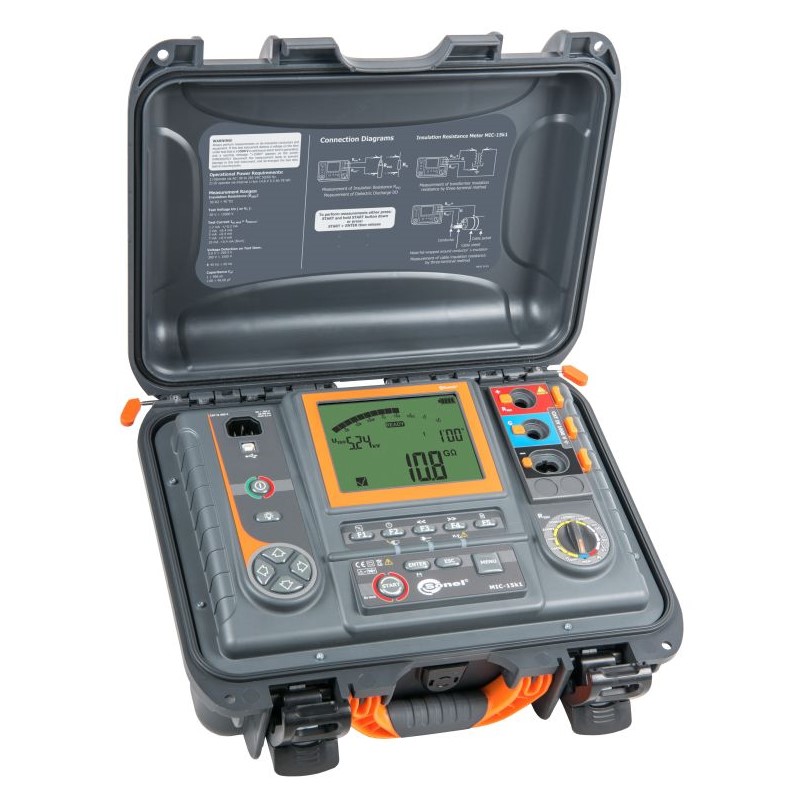

15kV Insulation Resistance Meter | MIC15k1

Description 15kV Insulation Resistance Meter | MIC15k1 Insulation Resistance Measurement Measuring range according to IEC 61557-2 UN= 15 000 V: 50 kΩ – 40.0 TΩ Measurement with DC and increasing voltage (SV) for UISO= 15 kV Range Resolution Accuracy 0,0 – 999 kΩ 1 kΩ ±(3% m.v. 10 digits) 1,00 – 9,99 MΩ 0,01 MΩ ±(3% m.v. 10 digits) 10,0 – 99,9 MΩ 0,1 MΩ ±(3% m.v. 10 digits) 100 – 999 MΩ 1 MΩ ±(3% m.v. 10 digits) 1,00 – 9,99 GΩ 0,01 GΩ ±(3% m.v. 10 digits) 10,0 – 99,9 GΩ 0,1 GΩ ±(3% m.v. 10 digits) 100 – 999 GΩ 1 GΩ ±(3,5% m.v. 10 digits) 1,00 – 9,99 TΩ 0,01 TΩ ±(7,5% m.v. 10 digits) 10,0 – 20,0 TΩ 0,1 TΩ ±(12,5% m.v. 10 digits) 10,0 – 40,0 TΩ 0,1 TΩ ±(12,5% m.v. 10 digits) Ranges of measured resistance depending on the test voltage Voltage UISO Measuring range 50 V 200 GΩ 100 V 400 GΩ 250 V 1,00 TΩ 500 V 2,00 TΩ 1000 V 4,00 TΩ 2500 V 10,00 TΩ 5000 V 20,0 TΩ 10 000 V 40,0 TΩ 15 000 V 40,0 TΩ Capacitance measurement Range Resolution Accuracy 0 – 999 nF 1 nF ±(5% m.v. 5 digits) 1,00 – 49,99 µF 0,01 µF ±(5% m.v. 5 digits) Displaying measured capacity after RISO measurement For measurement voltages below 100 V, the measurement error is not specified Specifications Type of insulation acc. to EN 61010-1 and IEC 61557 double Measurement category acc. to EN 61010-1 IV 1000 V (operating altitude ≤2000 m) IV 600 V (operating altitude ≤3000 m) Ingress protection acc. to EN 60529: IP67 (IP40 for closed case) Resistance to external interference voltages: up to 1550 V Resistance to external interference currents: up to 10 mA Advanced, digital filtering of interferences: 10 / 30 / 60 / 100 / 200 seconds Test leads lock: yes Power supply: Li-Ion 14.8 V rechargeable battery from network 90 V ÷ 260 V, 50 Hz/60 Hz Dimensions: 390 x 308 x 172 mm Weight: approx. 6.3 kg Storage temperature: -25ºC… 70ºC Operating temperature: -20ºC… 50ºC Humidity: 20%…90% Operating altitude: ≤3000 m Reference temperature: 23ºC ± 2ºC Reference humidity: 40%…60% Display: graphical LCD The number of RISO measurements with the battery power supply: min. 1000 acc. to EN 61557-2 Data transmission: USB and Bluetooth Quality standard: ISO 9001 compliant The device meets the requirements of standards: EN 61010-1 and IEC 61557 The product meets EMC requirements (immunity for the industrial environment) in accordance with standards: EN 61326-1 and EN 61326-2-2 15kV Insulation Resistance Meter | MIC15k1
