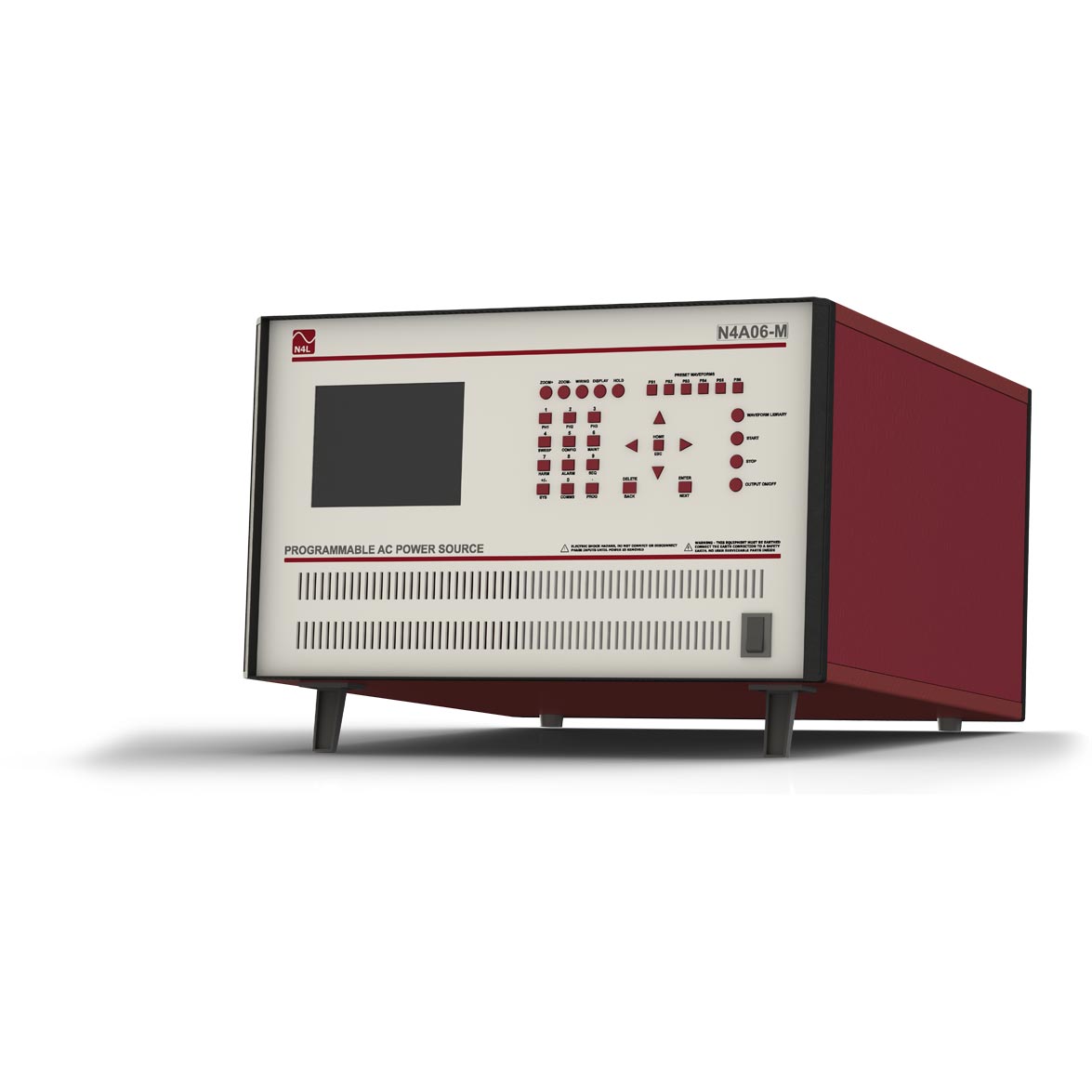

Programmable Power Sources AC DC 3kVA ~ 67kVA | N4A

Description Programmable Power Sources AC DC 3kVA ~ 67kVA Technical Specifications N4A03 (1 Phase) N4A06 (1 Phase) N4A18 (3 Phase) N4A30 (3 Phase) N4A67 (3 Phase) Nominal Output Power 3,000VA 6,000VA 18,000VA 30,000VA 67,500kVA Output Output Voltage (AC) 0-300Vrms 0-300Vrms 0-300Vrms 0-300Vrms 0-300Vrms Output Voltage (DC) 0-425V DC 0-425V DC 0-425V DC 0-425V DC 0-425V DC Maximum Continuous Output Power (AC) 3000VA 6000VA 18,000VA (6,000VA/phase) 30,000VA (10,000VA/phase) 67,500VA (22,500VA/ phase) Maximum Inrush (3 Second) Output Power 6000VA 12000VA 36,000VA 60,000VA 90,000VA Maximum Output Current (Continuous) 10Arms 20Arms 20Arms (Per Phase) 33Arms (Per Phase) 75Arms (Per Phase) Maximum Output Current (Inrush) 20Arms 40Arms 40Arms (Per Phase) 67Arms (Per Phase) 100Arms (Per Phase) Output Frequency DC – 1kHz DC – 1kHz DC – 1kHz DC – 1kHz DC – 1kHz Min Slew Rate 3V/us 3V/us 3V/us 3V/us 3V/us Output Voltage Stability Better than 0.1% Better than 0.1% Better than 0.1% Better than 0.1% Better than 0.1% Output Voltage Accuracy Better than 0.5% Better than 0.5% Better than 0.5% Better than 0.5% Better than 0.5% THD Better than 0.3%* Better than 0.3%* Better than 0.3%* Better than 0.3%* Better than 0.3%* Output Noise <500mVrms <500mVrms <500mVrms <500mVrms <500mVrms Recovery Time of Output Waveform Better than 50us Better than 50us Better than 50us Better than 50us Better than 50us Max Compensated drop on wires (w.r.t voltage setting) 5% 5% 5% 5% 5% Recovery Time of Drop on Wires Less than 200ms Less than 200ms Less than 200ms Less than 200ms Less than 200ms Maximum Crest Factor Output (Current) [Inrush Imax*1.41]/RMS Load Current [Inrush Imax*1.41]/RMS Load Current [Inrush Imax*1.41]/RMS Load Current [Inrush Imax*1.41]/RMS Load Current [Inrush Imax*1.41]/RMS Load Current General Specifications Dimensions 281 x 471 x 513 mm 281 x 471 x 513 mm 1785 x 930 x 755 mm 1785 x 930 x 755 mm 1800 x 1200 x 800 mm Weight 30kg 45kg 740kg 740kg 1300kg Input Voltage 230V AC /- 10% 1PH 400V AC /- 10% 3 PH 400V AC /- 10% 3PH 400V AC /- 10% 3 PH 400V AC /- 10% 3PH Input Frequency 45-65Hz 45-65 Hz 45-65Hz 45-65 Hz 45-65Hz Operating Temperature 0-35degC 0-35deg C 0-35degC 0-35deg C 0-35degC Input Current 24Arms 16Arms Phase / 27A Neutral 60A continuous 120A inrush / Phase 80A continuous 160A inrush / Phase 160A continuous 220A inrush / Phase Programmable Power Sources AC DC 3kVA ~ 67kVA
