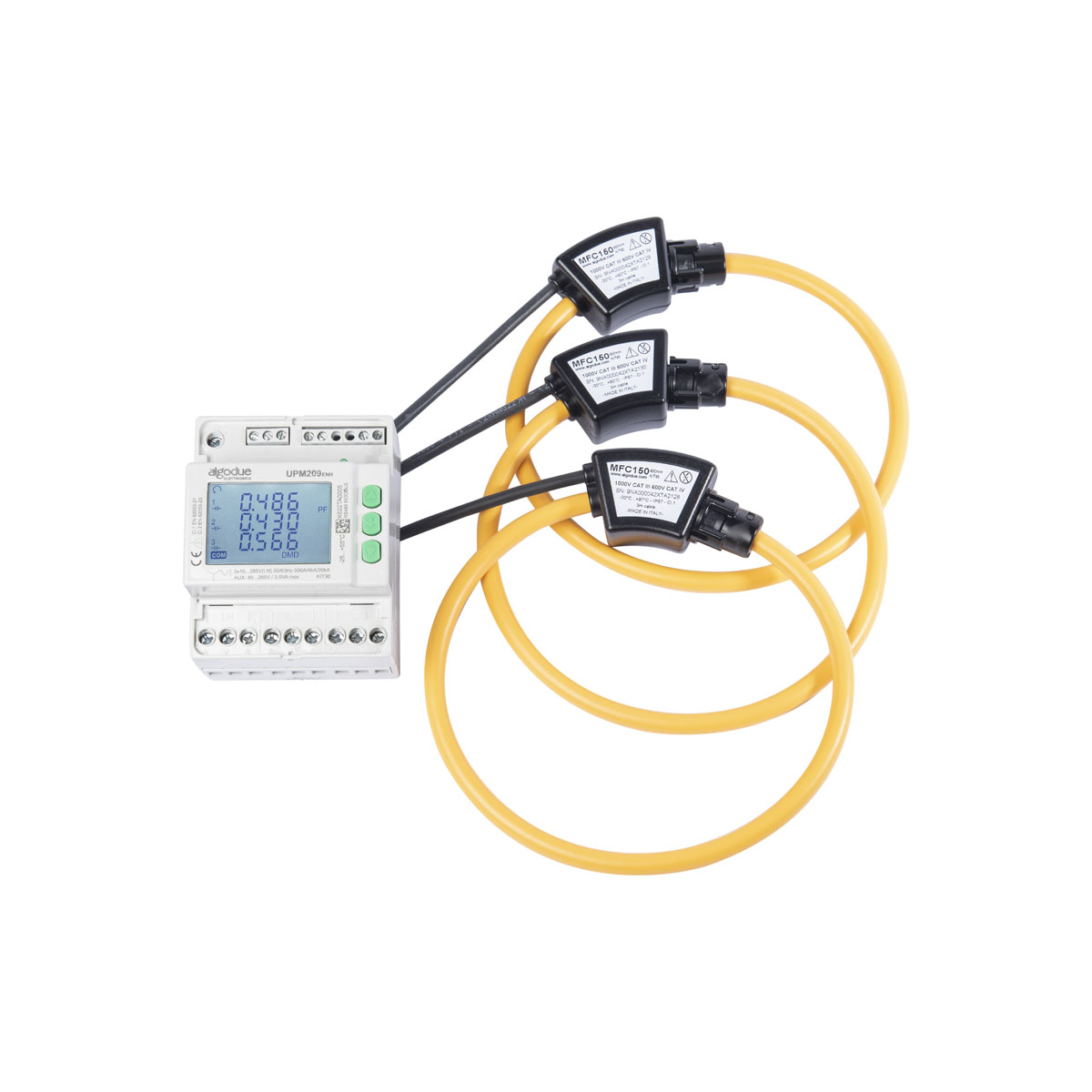

3-Phase Network Power Analyzer 4 Din Module | UPM209RGW

Description 3-Phase Network Power Analyzer 4 Din Module | UPM209RGW Specifications   Power supply Voltage range: 85 … 265 VAC, Cat II Maximum consumption: Instrument with RS485 port: 1.6 VA – 1 W Instrument with Ethernet port: 4.5 VA – 1.6 W Frequency: 50/60 HzVoltage inputs Voltage range: 3×10/17 … 3×285/495 VAC, Cat III 300 V Minimum voltage value for FFT calculation: 20/35 VAC (multiplied by PT ratio in case of PT use) with direct connectionCurrent inputs Maximum value: 3 selectable scales, 500/4000/20000A Starting current (Ist) 0.3 A for FSA 500 A, 1 A for FSA 4000 A, 10 A for FSA 20000 A Minimum current value for FFT calculation: 70 A for FSA 500 A, 400 A for FSA 4000 A, 1500 A for FSA 20000 A 2% harmonic accuracy ±2 digitsTypical accuracy Voltage: ±0.2% reading in 10% FS…FS range (FS=Full Scale value) Current: ±0.4% reading in 5% FS…FS range Power: ±0.5% reading ±0.1% FS (PF=1) Frequency: ±0.1% reading ±1 digit in 45…65 Hz range Active energy: Class 1 according to IEC/EN 62053-21 Reactive energy: Class 2 according to IEC/EN 62053-23Display & keyboard Display: Backlighted LCD, 43×29 mm 3 rows, 4 digits symbols Keyboard: 3 front buttons 1 protected buttonCommunication ports Type: RS485 optoisolated or Ethernet Protocols: MODBUS RTU/ASCII in case of RS485 port HTTP, NTP, DHCP, MODBUS TCP in case of Ethernet port Baud rate: 300 … 57600 bps in case of RS485 port 10/100 Mbps in case of Ethernet portDigital output (DO) Type: RS485 optoisolated or Ethernet Protocols: MODBUS RTU/ASCII in case of RS485 port HTTP, NTP, DHCP, MODBUS TCP in case of Ethernet port Baud rate: 300 … 57600 bps in case of RS485 port 10/100 Mbps in case of Ethernet port Wire diameter for terminals Measuring terminals (A & V): 1.5 … 6 mm2 Terminals for digital output, AUX input, RS485 port: 0.14 … 2.5 mm2 Size & weight LxHxP, W: 72x90x65 mm, max 436 g Environmental conditions Operating temperature: -25 °C … 55 °C (3K6) Storage temperature: -25 °C … 75 °C (2K3) Max humidity (without condensation): 80% Sinusoidal vibration amplitude: 50 Hz ±0,075 mm Protection degree – frontal part: IP51 (granted only in case of installation in a cabinet with at least IP51 protection degree) Protection degree – terminals: IP20 Pollution degree: 2 Installation and use: Internal Standard compliance (for the parts applicable for UPM209) Directives: 2006/95/EC, 2004/108/EC Safety: EN 61010-1, EN 61010-2-030 EMC: EN 61326-1, EN 55011, EN 61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11, EN61000-6-2 3-Phase Network Power Analyzer 4 Din Module | UPM209RGW
