15kV Phasing Rods with Digital Reading | PR15D

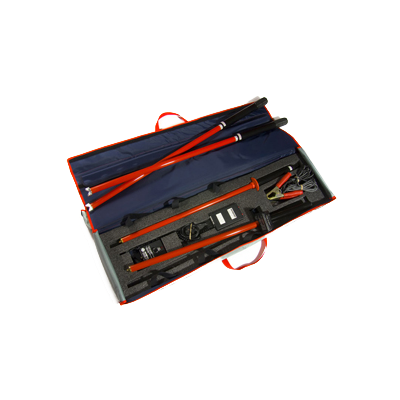

15kV Phasing Rods – Overview The PR15D is a digital HV potential indicator and phasing stick that can be used to indicate the presence of voltage, make voltage measurements and provide a means of phase comparison at the point of paralleling two circuits, without the interposition of voltage transformers or secondary wiring circuits. It is suitable for use on earthed neutral systems up to 15kV. The LCD is powered by an integral rechargeable battery and is supplied with a battery charger and PH3 proving unit in a bespoke carrying case. Conforming to recommended creepage and safety standards, the PR15D features high-grade PVC tubing and incorporates totally encapsulated resistor chains. 15kV Phasing Rods – Features Provides a means of phase angle comparison and an indication of phase angle voltage at the point of intended paralleling of two circuits on neutral earthed systems Both units are digital instruments The chart provides a means of checking the phase angle difference of circuits paralleled Kit comprises two elements with resistor chains, one with a digital indicator and the second a phasing rod Datasheet
