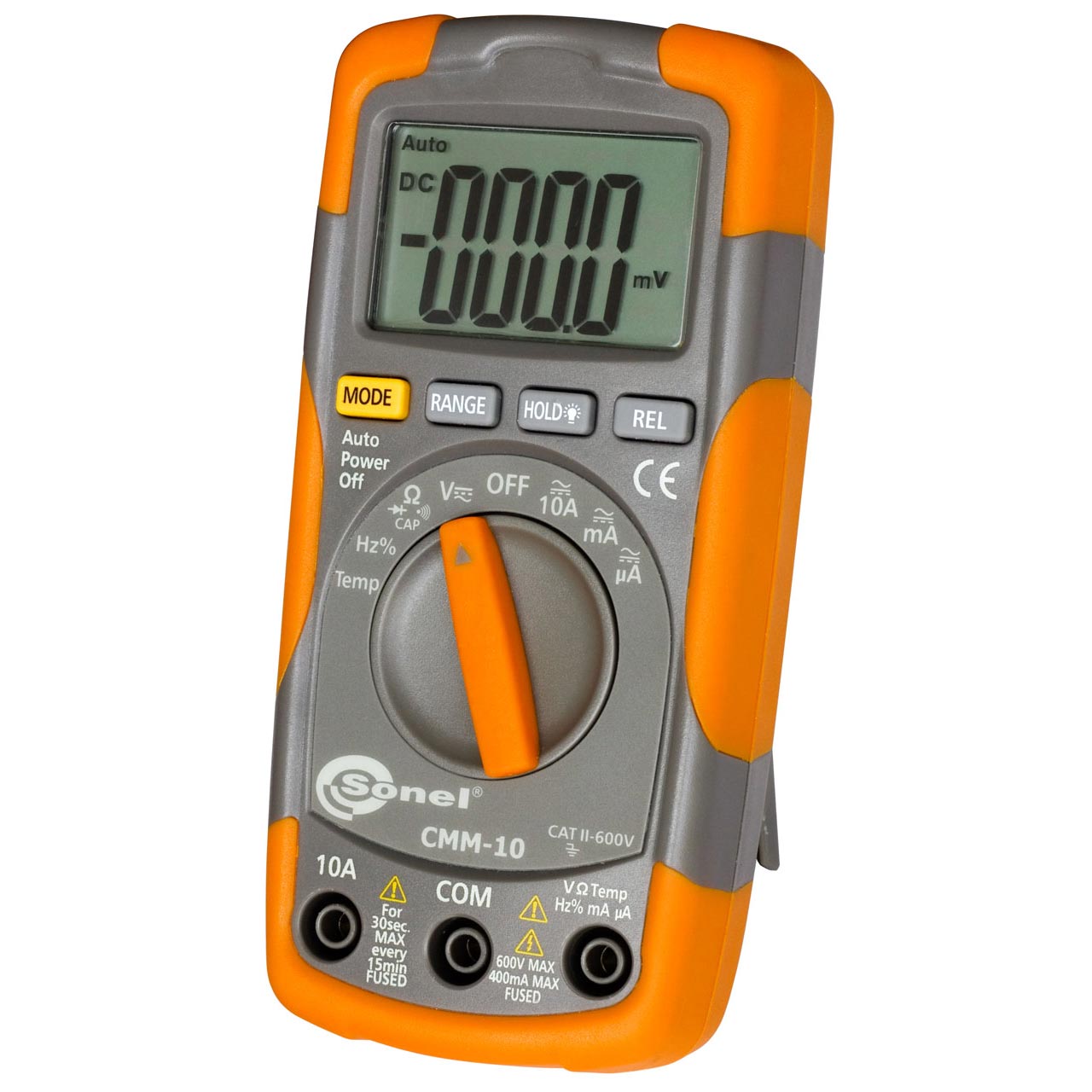

Economical Cat II 600V Digital Multimeter | CMM-10

Description Frequency measurement Range Resolution Accuracy 5,000 Hz 0,001 Hz ±(1,5% m.v. 5 digits) 50,00 Hz 0,01 Hz 500,0 Hz 0,1 Hz ±(1,2% m.v. 3 digits) 5,000 kHz 0,001 kHz 50,00 kHz 0,01 kHz 500,0 kHz 0,1 kHz 5,000 MHz 0,001 MHz ±(1,5% m.v. 4 digits) 10,00 MHz 0,01 MHz sensitivity: ≥8 V RMS Duty cycle measurement Range Resolution Accuracy 0,1…99,9% 0,1% ±(1,2% m.v. 2 digits) sensitivity: ≥8 V RMS, pulse width: 100µs – 100 ms, frequency width: 5 Hz…150 kHz. Temperature measurement Range Resolution Accuracy* -20°C… 760°C 1°C ±(3% m.v. 5°C, 9°F) -4°F… 1400°F 1°F * probe (K type) accuracy not included DC voltage measurement Range Resolution Accuracy 400,0 mV 0,1 mV ±(0,5% m.v. 2 digits) 4,000 V 0,001 V ±(1,2% m.v. 2 digits) 40,00 V 0,01 V ±(1,2% m.v. 2 digits) 400,0 V 0,1 V 600 V 1 V ±(1,5% m.v. 2 digits) input impedance: 7,8 MΩ AC voltage measurement Range Resolution Accuracy 400,0 mV 0,1 mV ±(1,5% m.v. 70 digits) 4,000 V 0,001 V ±(1,2% m.v. 3 digits) 40,00 V 0,01 V ±(1,5% m.v. 3 digits) 400,0 V 0,1 V 600 V 1 V ±(2,0% m.v. 4 digits) input impedance: 7,8 MΩ, frequency range: 50…400 Hz. DC current measurement Range Resolution Accuracy 400,0 μA 0,1 μA ±(1,0% m.v. 3 digits) 4 000 μA 1 μA ±(1,5% m.v. 3 digits) 40,00 mA 0,01 mA 400,0 mA 0,1 mA 4,000 A 0,001 A ±(2,5% m.v. 5 digits) 10,00 A 0,01 A AC current measurement Range Resolution Accuracy 400,0 μA 0,1 μA ±(1,5% m.v. 5 digits) 4 000 μA 1 μA ±(1,8% m.v. 5 digits) 40,00 mA 0,01 mA 400,0 mA 0,1 mA 4,000 A 0,001 A ±(3,0% m.v. 7 digitgs) 10,00 A 0,01 A frequency range: 50…400 Hz. Resistance measurement Range Resolution Accuracy 400,0 Ω 0,1 Ω ±(1,2% m.v. 4 digits) 4,000 kΩ 0,001 kΩ ±(1,0% m.v. 2 digits) 40,00 kΩ 0,01 kΩ ±(1,2% m.v. 2 digits) 400,0 kΩ 0,1 kΩ 4,000 MΩ 0,001 MΩ 40,00 MΩ 0,01 MΩ ±(2,0% m.v. 3 digits) Capacitance measurement Range Resolution Accuracy 40,00 nF 0,01 nF ±(5,0% m.v. 7 digits) 400,0 nF 0,1 nF ±(3,0% m.v. 5 digits) 4,000 μF 0,001 μF 40,00 μF 0,01 μF 100,0 μF 0,1 μF ±(5,0% m.v. 5 digits) “m.v” = measured value Electric security: type of insulation: double, according to EN 61010 – 1 and IEC 61557 measurement category: CAT II 600 V acc. to EN 61010 – 1:2004 protection class acc. to EN 60529: IP40 Other technical data: power supply: 9 V battery type 6LR61 diode test: I=0,3 mA, U0 = 1,5 V DC continuity test: I<0,3 mA, sound signal for R<50 Ω over range indication: 0L displayed sampling rate: 2 times per second input impedance: 7,8 MΩ (V AC/DC) display: 5000 counts LCD display with function indication dimensions: 138 x 68 x 37 mm weight: approx. 210 g fuses: mA, µA range: 0,5 A/250 V fast; A range: 10 A/250 V fast auto power OFF: 30 min accordance with following standards: EN 61010 – 1:2004, EN 61010 – 2 – 032 Rated operational conditions: operating temperature: 0… 50°C at <70% rel. humidity storage temperature: -20… 60°C at <80% rel. humidity
