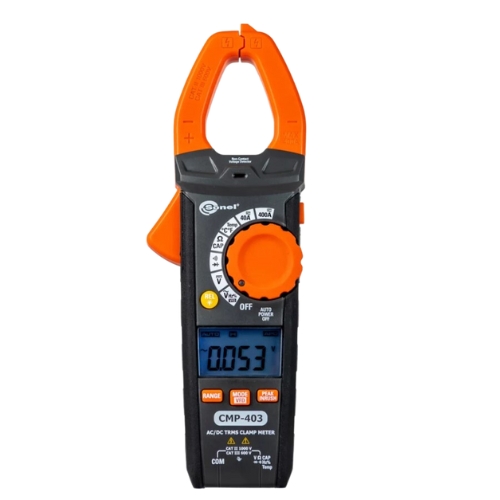

Digital AC/DC Clamp Meter | CMP-403

Description Digital Clamp Meter | CMP-403 Measurement functions Range Resolution Accuracy AC current up to 400.0 A from 0.01 A from ±(2.0% m.v. 8 digits) DC current up to 400.0 A from 0.01 A from ±(2.0% m.v. 8 digits) AC and VFD voltage up to 1000 V from 0.001 V from ±(1.2% m.v. 5 digits) DC voltage up to 1000 V from 0.001 V from ±(1.0% m.v. 3 digits) Resistance up to 40.00 MΩ from 0.1 Ω from ±(1.0% m.v. 4 digits) Frequency current up to 999.9 Hz from 0.01 Hz ±(1.0% m.v. 5 digits) voltage up to 99.99 kHz from 0.01 Hz ±(1.0% m.v. 5 digits) Capacitance up to 99.99 mF from 0.001 nF from ±(3.0% m.v. 5 digits) Duty cycle (%) 20.0…80.0% 0.1% ±(1.2% m.v. 10 digits) Temperature measurement -20.0… 1000ºC -4.0… 1832ºF 0.1ºC 0.1ºF ±(3% m.v. 3ºC) ±(3% m.v. 5ºF) Continuity / Diode test ✓ / ✓ m.v. – measured value Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost. Digital Clamp Meter | CMP-403
