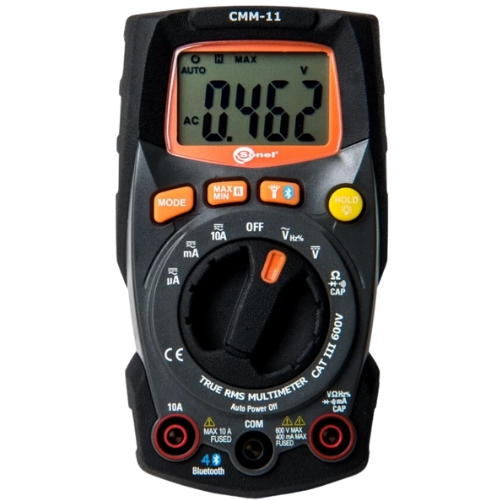

Modern Digital Multimeter with Flashlight, Bluetooth and IP65 Rated | CMM-11

Description Frequency measurement Range Resolution Accuracy 9,999 Hz 0,001 Hz ± (1,0 % m.v. 5 digits) 99,99 Hz 0,01 Hz 999,9 Hz 0,1 Hz 9,999 kHz 0,001 kHz 99,99 kHz 0,01 kHz Duty cycle Range Resolution Accuracy 0,1… 99,9% 0,1% ± (1,2 % m.v. 2 digits) DC Voltage measurement Range Resolution Accuracy 400,0 mV 0,1 mV ± (1,0% m.v 8 digits) 4,000 V 0,001 V ± (1,0% m.v. 3 digits) 40,00 V 0,01 V ± (1,0% m.v. 3 digits) 400,0 V 0,1 V ± (1,0% m.v. 3 digits) 600 V 1 V ± (1,2% m.v. 3 digits) DC Voltage measurement Range Resolution Accuracy 4,000 V 0,001 V ± (1,0% m.v. 5 digits) 40,00 V 0,01 V ± (1,0% m.v. 5 digits) 400,0 V 0,1 V ± (1,0% m.v 5 digits) 600 V 1 V ± (1,2% m.v. 5 digits) DC current measurement Range Resolution Accuracy 400,0 μA 0,1 μA ± (1,0% m.v 3 digits) 4000 μA 1 μA ± (1,5% m.v. 3 digits) 40,00 mA 0,01 mA ± (1,5% m.v. 3 digits) 400,0 mA 0,1 mA ± (1,5% m.v 3 digits) 10,00 A 0,01 A ± (2,5% m.v. 5 digits) AC voltage measurement (True RMS) Range Resolution Accuracy 400,0 µA 0,1 µA ± (2,0% m.v. 5 digits) 4000 µA 1 µA ± (2,5% m.v. 5 digits) 40,00 mA 0,01 mA ± (2,5% m.v. 5 digits) 400,0 mA 0,1 mA ± (2,5% m.v. 5 digits) 10,00 A* 0,01 A ± (3,0% m.v. 7 digits) *max 30 s Resistance measurement Range Resolution Accuracy 400,0 Ω 0,1 Ω ± (1,0 % m.v. 4 digits) 4,000 kΩ 0,001 kΩ ± (1,5 % m.v. 5 digits) 40,00 kΩ 0,01 kΩ ± (1,5 % m.v. 5 digits) 400,0 kΩ 0,1 kΩ ± (1,5 % m.v. 5 digits) 4,000 MΩ 0,001 MΩ ± (1,5 % m.v. 5 digits) 40,00 MΩ 0,01 MΩ ± (1,5 % m.v. 5 digits) Capacitance measurement: Range Resolution Accuracy 40,00 nF 0,01 nF ± (5,0 % m.v. 35 digits) 400,0 nF 0,1 nF ± (3,0 % m.v. 5 digits) 4,000 µF 0,001 µF ± (3,0 % m.v. 5 digits) 40,00 µF 0,01 µF ± (3,0 % m.v. 5 digits) 400,0 µF 0,1 µF ± (4,0 % m.v 5 digits) 4000 µF 1 µF ± (5,0 % m.v. 5 digits) „m.v.”- measured value Electric security: type of insulation: double, according to EN 61010 – 1 and IEC 61557 measurement category: CAT III 600 V acc. to EN 61010 – 1:2004 protection class acc. to EN 60529: IP67 Other technical data: power supply: 2 x battery AAA 1,5 V diode test: I=0,3 mA, U0 = 3,3 V DC continuity test: I<0,5 mA, sound signal for R<50 Ω over range indication: symbol 0L sampling rate: 2 times per second input impedance: 10 MΩ (V AC/DC) display: backlit LCD, counts 4000 with icons dimensions: 121 x 67 x 45 mm weight (with batteries): 204 g fuses: range mA, µA: 0,5 A/600 V fast,  range A: 10 A/600 V fast auto power OFF: 15 minutes accordance with following standards: EN 61010-1, EN 61010-031, EN 61010-2-033, EN 61326-1, EN 61326-2-2, quality standard: ISO 9001 Rated operational conditions:: temperaturę range: 5.. 40°C, humidity < 80% up to ≤ 31°C, decreasing linearly to 50% at 40°C storage temperature: -20… 60°C at humidity <80%
