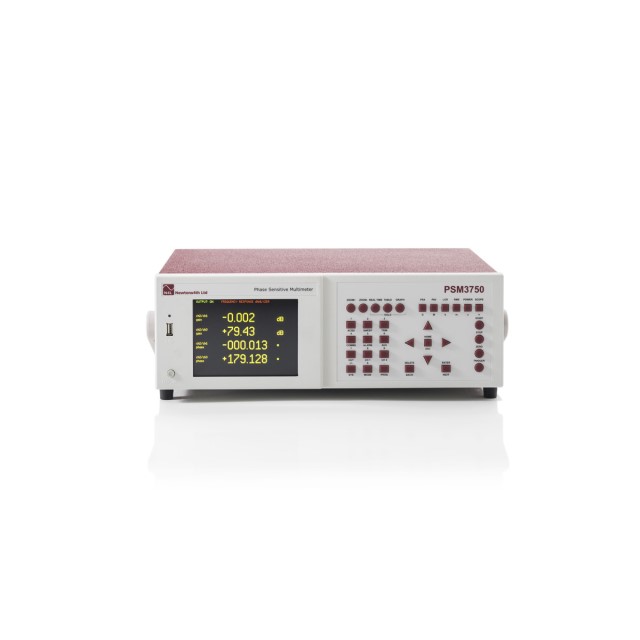

High Accuracy 50MHz Bandwidth | PSM3750

Description High Accuracy 50MHz Bandwidth PSM3750 Technical Specifications High Accuracy 50MHz Bandwidth | PSM3750 MEASUREMENT SPECIFICATION   Frequency Response Analyser Measurement Magnitude | Gain (CH1/CH2, CH2/CH1) Gain (dB) | Offset Gain (dB) | Phase (º) Frequency Range 10µHz – 50MHz Gain Accuracy in dB 0.01dB 0.1dB / MHz < 5MHz 0.31dB 0.04dB / MHz < 50MHz Phase Accuracy 0.025º < 10kHz 0.05deg 0.00025deg / kHz < 50MHz Frequency Source Generator | CH1 Input Measurement Real-Time DFT | No missing data Speed Up to 100 reading per second Filter Selectable from 0.2 seconds Phase Angle Voltmeter Measurement In Phase | Quadrature | Tan Ø | Magnitude | Phase | In-Phase ratio | RMS | RMS ratio LVDT differential LVDT ratiometric Frequency Range 10µHz – 50MHz Basic Accuracy (AC) 0.075% range 0.075% reading 50µV < 10kHz 0.075% range 0.25% 0.001% / kHz rdg 50µV < 1MHz 0.075% range 0.01% 0.00025% / kHz rdg 50µV < 50MHz LCR Meter Functions L | C | R (AC) | Q | Tan Delta | Impedance | Phase – Series or Parallel Circuit Frequency Range 10µHz – 50MHz (35MHz – 50MHz reference only) Current Shunt External or Optional IAI2 Impedance Interface LCR Measurement Functions Resistance (R) 1mΩ to 500MΩ Reactance (X) 1mΩ to 500MΩ Impedance (Z) 1mΩ to 500MΩ Capacitance Value (Cp & Cs) 1pF to 1mF Phase Angle 0 to 360 deg with 0.001-degree resolution Q. Factor /- 0.00001 ~ 9999.99 Tan Delta (Reciprocal of Q, also known as Dissipation Factor (D) /- 0.00001 ~ 9999.99 Admittance (Y) reciprocal of impedance (Siemens) /- 2nS to 1KS Conductance (G) resistive part of admittance (Siemens) /- 2nS to 1KS Susceptance (B) reactive part of admittance (Siemens) /- 2nS to 1KS Voltage Bias /- 10V Ranges (External Shunt) Inductance 1H to 100 H Capacitance 100pF to 100F Resistance 1Ω to 1MΩ Basic Accuracy 0.1% Tolerance of Shunt Sweep Capability all AC functions True RMS Voltmeter Channels 2 (Optional 3rd Channel Available) Frequency Range DC to 5MHz 5MHz to 50MHz fundamental only Measurement RMS | AC | DC | PEAK | CF | SURGE | dBm Basic Accuracy (AC) As PAV 0.05mV Basic Accuracy (DC) 0.1% range 0.1% reading 0.5mV Power Meter Measurements W | VA | PF | V | A | Total | Fundamental and Integrated | Power Harmonics Frequency Range DC to 5MHz 5MHz to 50MHz fundamental only Current Shunt External Current Accuracy As Voltage External Shunt Tolerance Watts Accuracy 0.1% VA range 0.1% reading External Shunt Tolerance Signal Generator Type Fully isolated 10Vrms output protected to 500Vpk | Direct Digital Synthesis Frequency 10µHz – 50MHz Waveforms Sine | Square | Triangle | Sawtooth | White Noise Accuracy (no trim) Frequency 0.05% Amplitude ±5% < 10MHz, Amplitude ± 10% < 50MHz Impedance 50 Ohm ± 2% 100pF to Chassis Output Level(Open Circuit) 35mVrms to 10Vrms Offset ±10vdc, Resolution 20mV Harmonic Analyser Scan Single or Series Frequency range 20mHz to 5MHz 5MHz to 50MHz Fundamental only Measurement Harmonic | Series | THD | Difference THD Max Harmonic 100 Input Ranges Differential Inputs 2 or 3 x Isolated Inputs 500Vpk Connectors Isolated BNC Coupling AC DC, AC (<10VDC), AC (< 500VDC) Ranges 3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V, 10V, 30V, 100V, 300V, 500V,300mV∗, 1V∗, 3V∗, 10V∗ ∗ High Voltage Attenuator Scaling 1 x 10^-9 to 1 x 10^9 Ranging Full auto, Up only or Manual Input Impedance 1M Ohm Differential / 100pF to Chassis Model Numbers Available Packages PSM3750 – 2C PSM3750 – 2C IAI2 PSM3750 – 3C PSM3750 – 3C IAI2 2 Channel PSM3750 2 Channel PSM3750 IAI2 3 Channel PSM3750 3 Channel PSM3750 IAI2 IAI2 – Impedance Analysis Interface Specification Frequency Range 10µHz – 50MHz Measurement Parameters L | C | R | Z | Phase | QF | Tan (δ) | Series and Parallel Circuit Basic Accuracy 0.1% 1kHz 0.2% 0.002% / kHz < 1MHz 0.2% 0.0005% / kHz < 35MHz 0.2% 0.001% / kHz < 50MHz Measurement Ranges 10nH to 10kH, 1pF to 1000F 1mΩ to 500MΩ Phase Accuracy of Internal Shunts Low Shunt 5Ω, 0.1deg 0.01deg / kHz Medium Shunt 50Ω, 0.05deg 0.005deg / kHz High Shunt 5kΩ, 0.05deg 0.005deg / kHz Very High Shunt 500kΩ 0.1deg 0.05deg / kHz Accessories and Ports Accessories Probes 4 off with 2 Channel Version 6 off with 3 Channel Version Leads Output | RS232 | Power Software CommView | PSMComm2 Documentation Calibration Certificate | User Manual Ports RS232 Baud Rate to 19200 |RTS/CTS flow control Analog Output Bipolar ±10V on any measured function – BNC Sync Output Pulse Synchronised to Generator Extension Ports(N4L Accessories) 215 pin female D type LAN (Standard) 10 / 100 base-T Ethernet auto-sensing RJ45 GPIB (Standard) IEEE488.2 Compatible System Specifications Datalog Functions Up to 4 measured functions | User Selectable Datalog Window From 10mS with No Gap between each log Memory RAM or Non Volatile Memory up to 16,000 records General Display 320 x 240 QVGA full-color TFT | White LED-backlit Dimensions 130H x 400w X 315D mm excluding feet Weight 3.3kg (2Channel) 3.5kg (3 Channel) Program Stores 100 | Location 1 Loaded upon Power Up Sweep Stores 2000 | all parameters in any sweep function Remote Operation Full Capability | Control, and Data High Accuracy 50MHz Bandwidth | PSM3750
