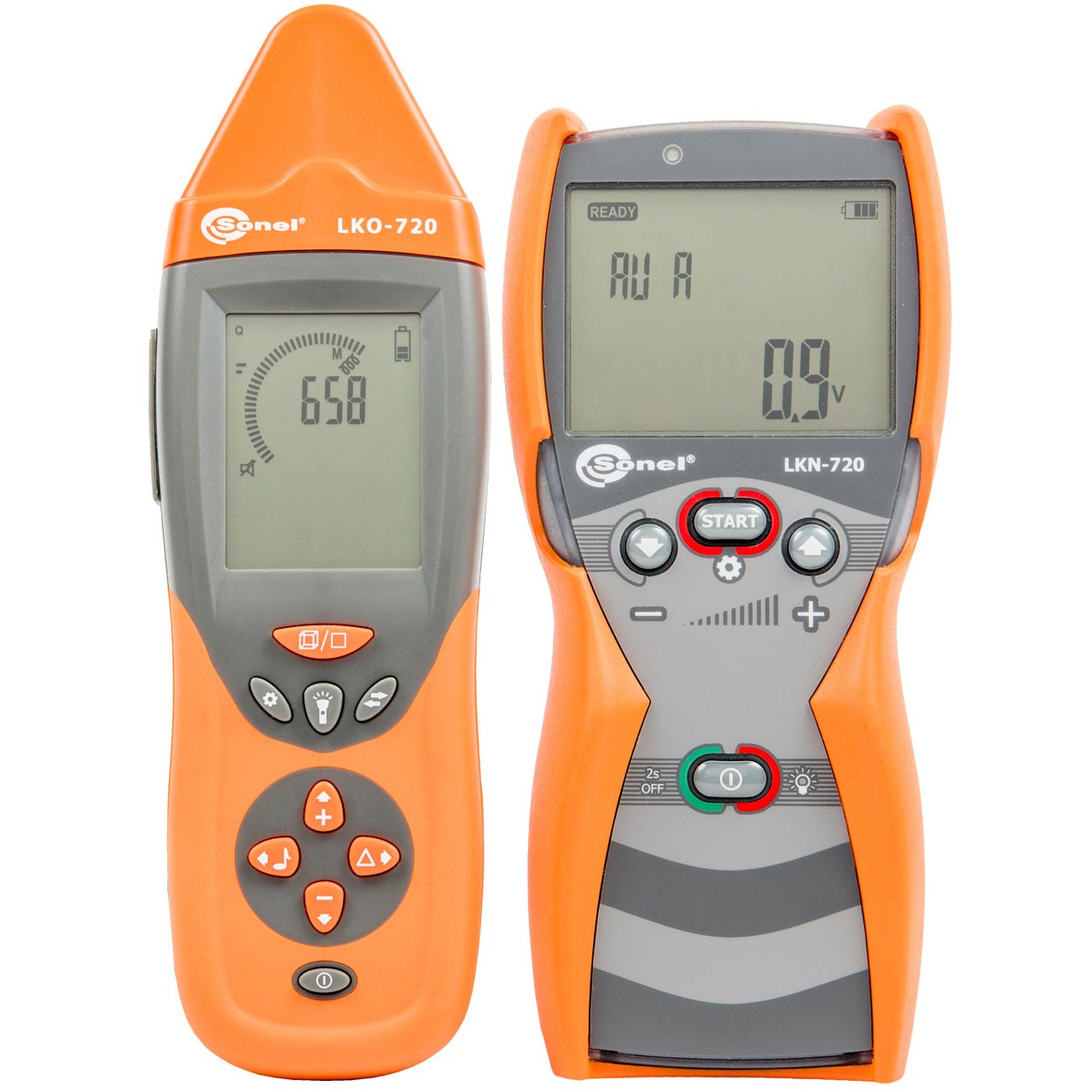

Wire and Pipe Locator | LKZ-720

Wire and Pipe Locator – Overview Detect and trace cables in ceilings, walls and floors with the LKO-720. The specially designed 3D antenna allows for precise wire tracing as well as making it easy to establish the direction of wires in concrete up to 5 cm.  Locate power points and switches in buildings, the location of fuses, and trace insulated conductors.  Non-contact detection of live cables allows for precise detection of energised wires in the air and concrete without additional probes. Wire and Pipe Locator – Features Detects cables in ceilings, walls and floors Detects breaks in cables Traces cables in building installation Locates power points and switches in buildings Locates short circuits between leads Traces shielded cables Traces cables in metal ducts Identifies fuses on the distribution board Traces underground cables Traces conductive water and heating pipelines Non-contact detection of live cables 3D function in the receiver – detects direction of current flow Phase detection mode Receiver operation with four transmitters LED bright torch Headphone socket in receiver Screens backlit for work in dark Transmission of battery status and settings to the receiver Operation in wide range of rated voltage, up to 500V RMS Measurement of voltage up to 500 Vrms Three levels of transmitter amplification Automatic or manual selection of transmitter operation modes 5 modes of wire tracer operation – voltage, current, current-voltage, power & clamp Software upgrade via USB Additional accessories enable precise localisation
