Time Domain Reflectometer | TDR-410

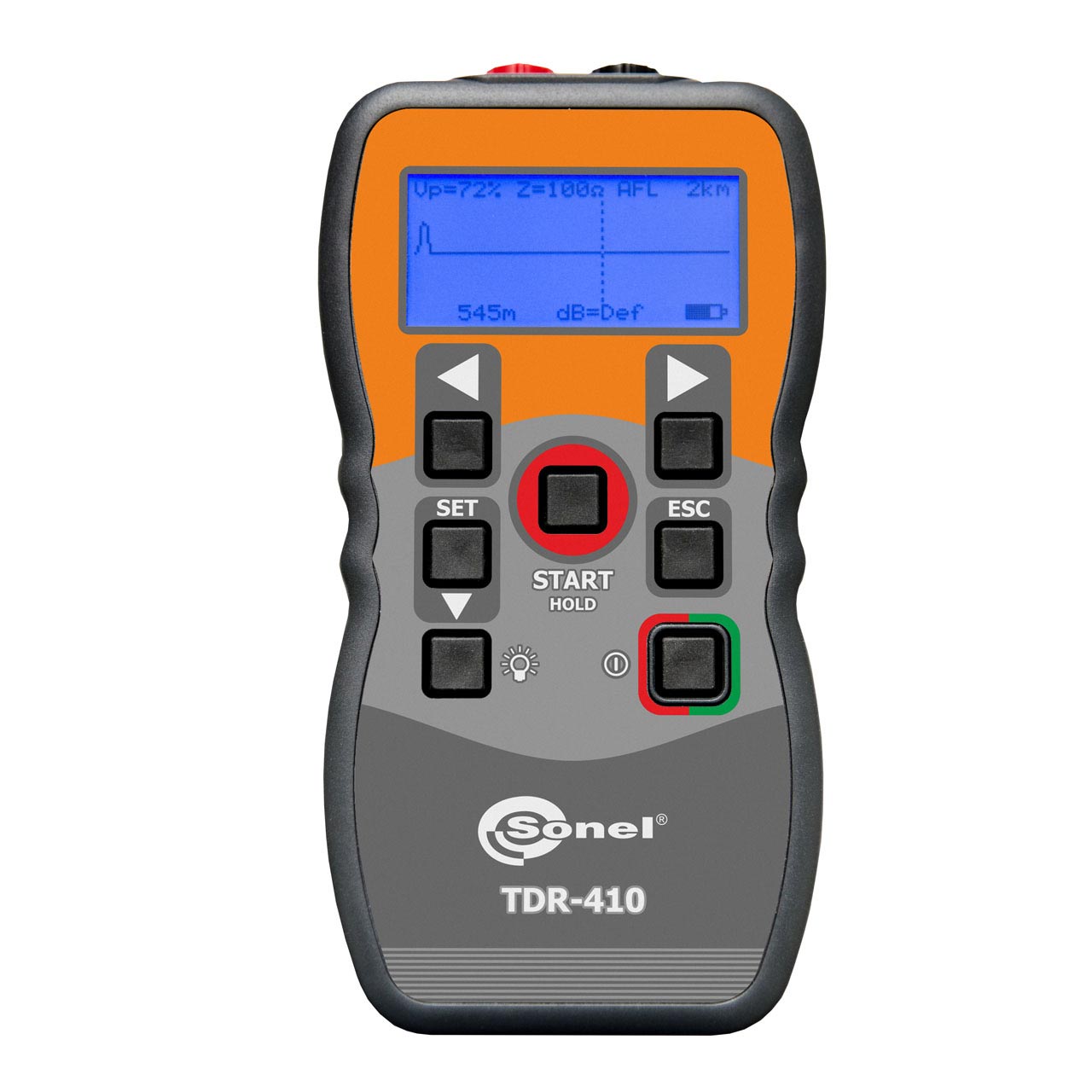

Time Domain Reflectometer – Overview TDR-410 time-domain reflectometers are designed to detect the location of faults in metal wires. These products are designed for electrical wholesalers, cable dealers, electrical installation companies, maintenance personnel at manufacturing plants and building personnel. SONEL reflectometers are known for their long range, up to 4,000 m for the TDR-410, very low margin of 1% error in measurement, and the ability to adjust both the velocity of propagation and the impedance of the cable which is under investigation. Two cursors indicate the distance to 2 faults and the distance between them. Cable fault location Includes: Locate damaged power cables Fault location for copper telecom cables Coaxial cable fault location Fault location for wiring infrastructure Detection of breaks, short circuits and damage Graphic depiction of damage to cable Automatic indication of the distance to fault Time Domain Reflectometer –  Features: Automatic or manual mode: Automatic fault location (AFL) Manual range selection and sensitivity Scan continuous or single measurement Ranges from 7 m to 4000 m “Dead zone” measure limited to 0.5 m Backlit 2.5 ” LCD screen Scan automatically or manually trigger Manually or automatically adjust sensitivity Impedance matching Propagation coefficient adjustment 1% to 99% Water-resistant housing Small size and weight Extended battery life of 30 hours
