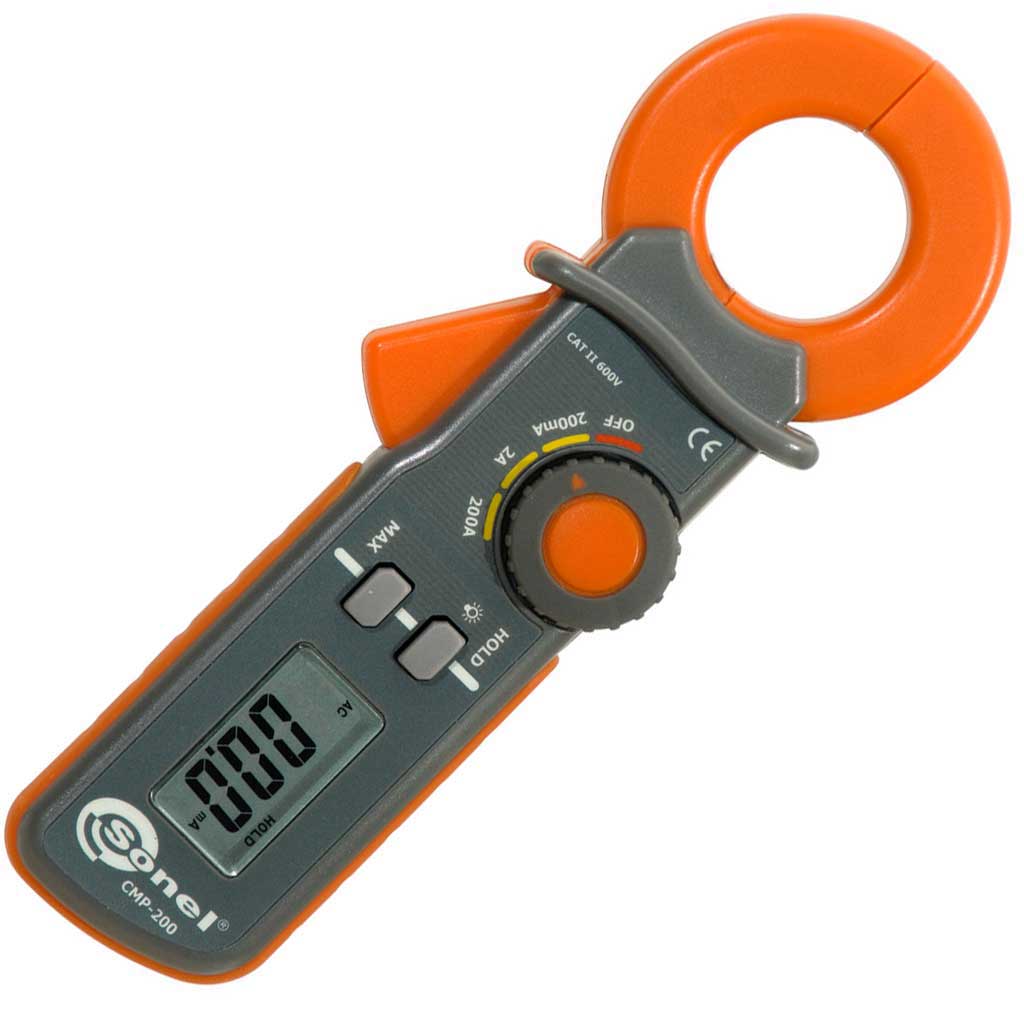

CMP-200 Clamp-On AC Leakage Current Meter

Description AC current measurement Range Resolution Accuracy 199,9 mA 0,1 mA ±(5% m.v 8 dgt) 1,999 A 0,001 A ±(5% m.v. 10 dgt) 199,9 A 0,1 A ±(2,5% m.v. 10 dgt) “m.v.”- measured value Electric security: type of insulation: double, according to EN 61010 – 1 and IEC 61557 measurement category: CAT II 600 V acc. to EN 61010 – 1:2004 protection class acc. to EN 60529: IP40 Other technical data: power supply: 1,5 V AAA battery (2 pcs.) over range indication: 0L displayed sampling rate: 2 times per second display: 1999 counts LCD, 3½ digits dimensions: 182 x 61 x 34 mm weight (including batteries): 225 g auto power OFF: 15 min. accordance with following standards: EN 61010 – 1:2004, EN 61010 – 2 – 032 quality standard: ISO 9001 Rated operational conditions: operating temperature and humidity: 0… 30°C (max 90%), 30…40°C (max 75%), 40…50°C (max 45%) storage temperature: -25… 60°C max <90% operating altitude: max 3000 m
