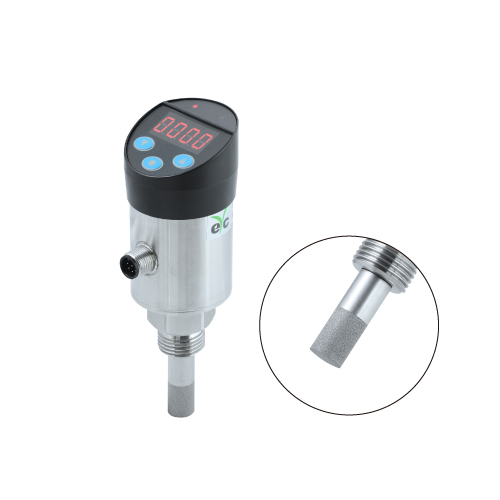

Industrial Dew Point Transmitter | THM88max

Description Industrial Dew Point Transmitter | THM88max Specifications Input Input sensor Capacitive humidity sensor & Pt100 Operating range of dew point -60 … 60 dp°C Output Max. scaling range Dew point: -100 … 60 dp°C Dew point switch to another(UI) Frost point: -60 … 0 fp°C Absolute humid.(Volume): 0 … 50000 ppm/v Absolute humid.(Weight): 0 … 50000 ppm/w Output signal Standard 4 … 20 mA RS-485 / 0 … 10 V RS-485 on request Signal connection 3-wire Load resistance Current output 500 Ω Voltage output 100 KΩ Output calibration Software (ZERO & SPAN) adjustment range Response time t90 ( Temp. at 25°C) ＜20 sec Accuracy Accuracy ±1 dp°C (at -20 … 20 dp°C) ±1.5 dp°C(at -40 … 20 dp°C) ±2 dp°C (at -60 dp°C) Reference (at -100 … -60 dp°C) Environmental Measuring medium Air Operating Temp.(With body and display) 0 … 60°C Operating Humid.(With body and display 0 … 95%RH(Non-condensing) Probe operating Temp. -40 … 60°C Storage Temp. -20 … 60°C Lock pressure 16 bar Electrical Power supply DC 24 V±10% Current consumption DC 24 V / 50 mA Electrical connection M12 connector Installation Duct type 1/2″G, 1/2″PT Protection IP rating Housing IP65 Filter:IP20 Electrical protection ■ Reverse polarity ■ Over-voltage ■ Short-circuit Material Cover PC Housing SUS 304 Filter Sintered SUS316 Weight 168 g Industrial Dew Point Transmitter | THM88max
