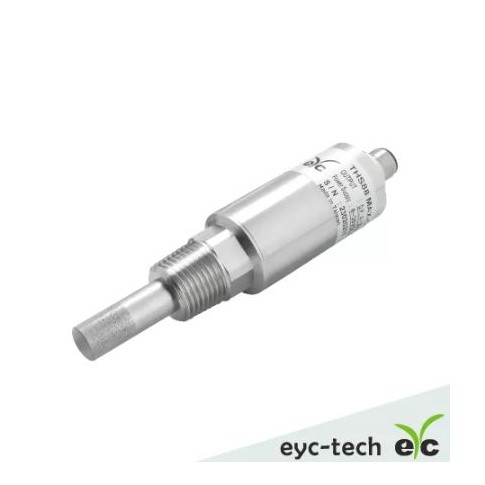

Dew Point Transducer 4-20mA | THS88max

Description Dew Point Transducer  Input Input type Capacitive humidity sensor & Pt100 Operating range of dew point -60 … 60 dp°C Output Max. scaling range Dew point:-100 … 60 dp°C Dew point switch to another Frost point:-60 … 0 fp°C Physical quantity range Absolute humid.(Volume)0 … 50000 ppm/v Absolute humid.(Weight)0 … 50000 ppm/w Output signal Standard 4 … 20 mA RS-485 / 0 … 10 V RS-485 on request Signal connection 3-wire Linear accuracy ±1 dp°C (at -20 … 20 dp°C) ±1.5 dp°C(at -40 … 20 dp°C) ±2 dp°C (at -60 dp°C) Reference (at -100 … -60 dp°C) Load resistance Current output: ≦ 500 Ω Voltage output: ≧ 100 KΩ Output calibration Software (ZERO & SPAN)adjustment range Response time t90 (Temp. at 25°C) ＜20 sec Electrical Power supply DC 24 V±15% Current consumption DC 24 V, 50 mA Electrical connection M12 connector Environment Medium Air Operating Temp. for housing 40 … 60°C Operating Humid. for housing 0 … 95%RH (Non-condensing) Operating Temp. for probe -40 … 60°C Storage temperature -25 … 60°C Pressure resistance 16 bar Installation Installation 1/2″PT, 1/2″G, and 5/8″UNF Protection IP rating IP65 (Probe : IP20) Electrical protection ■ Polarity protection ■ Over-voltage ■ Short-circuit Material Housing S.S.(SUS304) Probe S.S.(SUS304) SUS sintered filter (SUS316) Weight 168 g Dew Point Transducer
