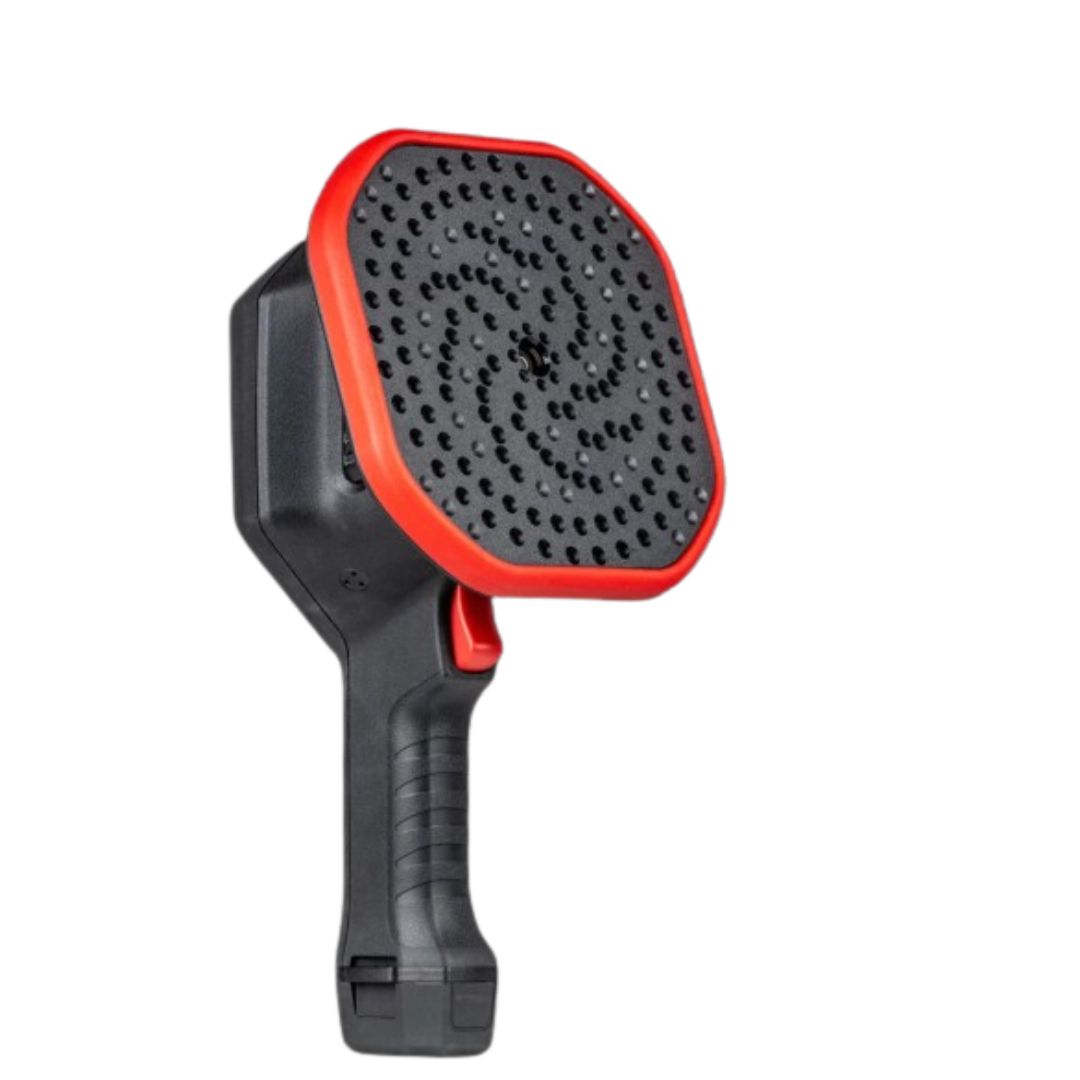

Industrial Acoustic Imager | KUS-200

Description Industrial Acoustic Imager | KUS-200 Specifications Parameter Description Acoustic parameters Number of microphones 136 Bandwidth 2 kHz…100 kHz Distance 0.3 m…150 m | 1.0 ft…492 ft Camera FOV 50.2° x 35.4° Sound intensity display Peak Point, Center Point Acoustic image frame rate 25 fps Signal noise ratio 70 dB Acoustic image resolution 800 x 480 Acoustic image palettes 8 Leak rate >0.0047 l/min @ 6 bar from 0.5 m | 1.64 ft >0.0073 l/min @ 5 bar from 1 m | 3.28 ft Image display Display 800 x 480 px, 4.3” LCD, touchscreen Digital zoom 1.0x…8.0x Screen brightness Manual / Auto Memory Storage media Removable 64 GB SD card Image storage capacity 18 000 images Video storage capacity 60 hours Video file format MP4 Annotations Voice note: max. 60 seconds Text note: max. 200 characters Power supply system Power supply 5 V DC/ 2 A (charging via USB) Battery type Dismountable and rechargeable Li-Ion battery Battery operating time Approx. 3.5 hours Battery charging time 5 hours to full charge Communication Wi-Fi 802.11 b/g/n (2.4 GHz and 5 GHz) USB interface USB Type-C HDMI interface HDMI-D Environmental conditions Protection level IP40 Operating temperature -20°C…50°C | -4°F…122°F Storage temperature -20°C…60°C | -4°F…140°F Relative humidity Industrial Acoustic Imager | KUS-200
