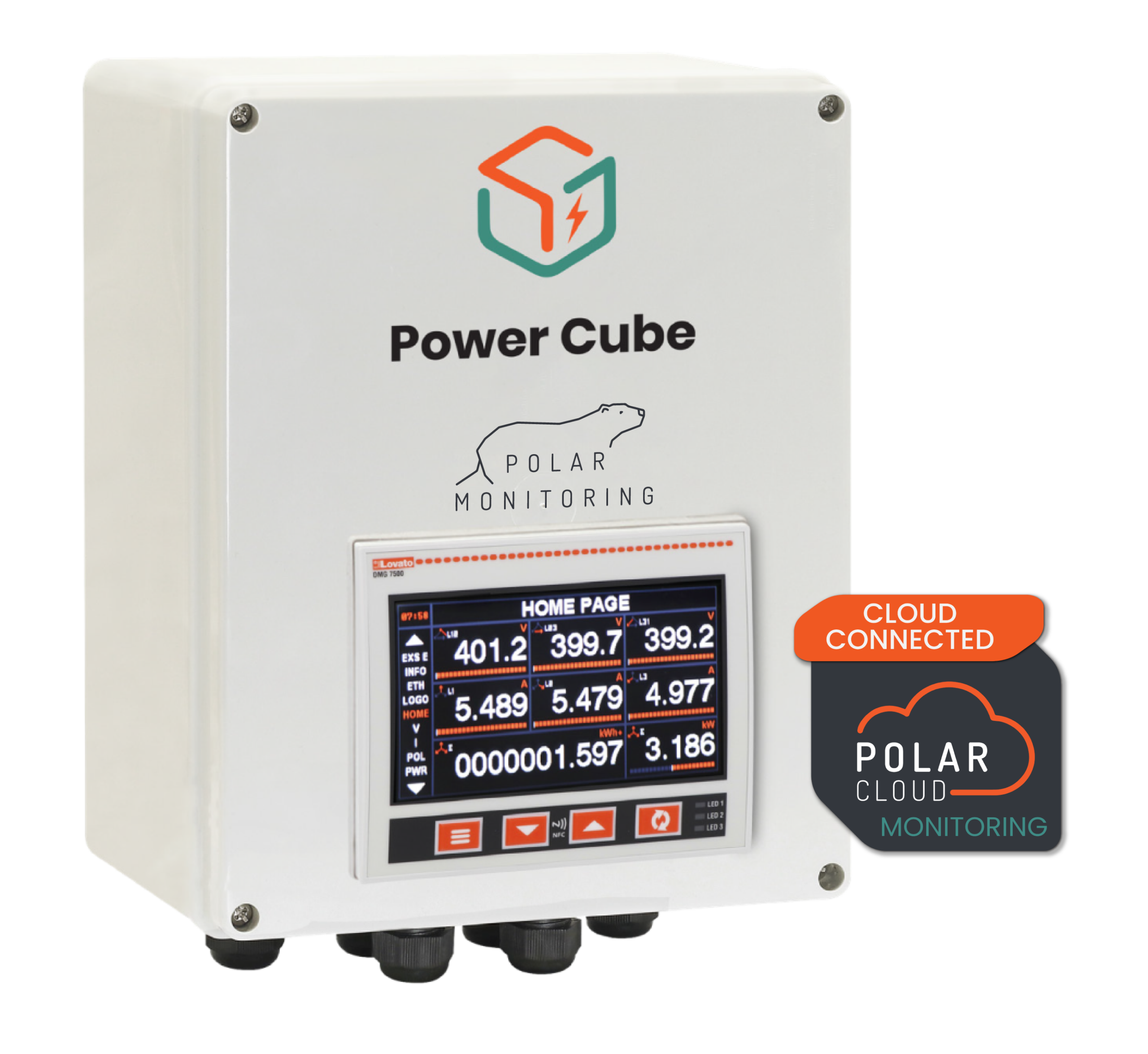

Power Monitor and Analyser | Power Cube

Description Power Monitor and Analyser | Power Cube Parameters Description Basic Parameters Input Voltage Min: 90 V AC Max: 240V AC Operating power 10W Antenna 2.5db with 2m cable, SMA Connection SIM Global connectivity to all networks managed by Polar Monitoring Connectivity Connection GSM (2G) LTE Cat 1 Brands GSM: 900/1800MHz LTE: B1/B3/B7/B8/B20/B28 Environmental Dimensions 300x250x110 Weight ±1.5kg Operating Temperature -20°C to 60°C Storage Temperature 30°C to 80°C Operating Humidity < 90% Mountings Wall Mount Water and Dust Protection IP54 Power Meter Make and model Lovato DMG 7500 Measuring Voltage Max: 600V AC Phase to Phase Max: 300V AC Phase to Neutral Measuring Frequency Min: 45 Hz Max: 66 Hz Measuring Current CT Connection Only: 1A/5A Harmonic Analysis 63rd Order Accuracy Voltage (L-N) ±0.2% Voltage (L-L) ±0.2% Current ±0.2% Frequence ±0.2% Active Power Class 0.5 Reactive Power Class 1 Active Energy Class 0.5s Reactive Energy Class 1 Power Monitor and Analyser | Power Cube
